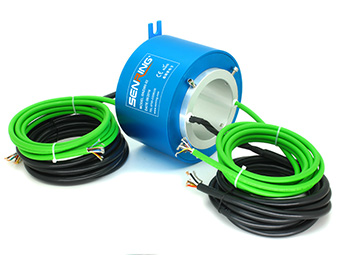

- 产品特点
- 孔径：70mm，外径: 158mm；
- 可同时带1~8台伺服电机同时工作；
- 主要给安川、西门子、三菱、松下等伺服电机编码器等自动化控制系统设计；
- 兼容市面上所有国产伺服电机系统；
- 内部走线和特殊屏蔽模块设计，可完全杜绝编码器报错误码，丢步率小于万分之二；
- 金-金接触，可靠性极高，多年西门子/海德汉大型控制系统使用经验。

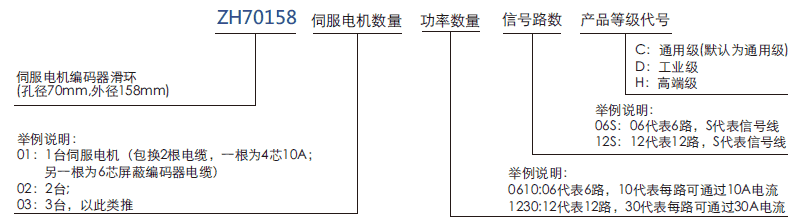

订购型号说明

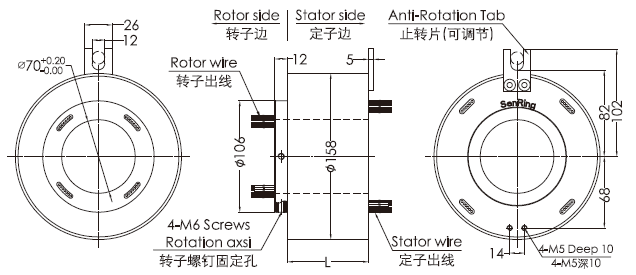

外形图纸
标准型号列表
| 型号 | 伺服电机数量 | 电流路数(10A) | 信号路数(5A) | 长度(Lmm) |
| ZH70158-01 | 1 | 0 | 0 | 82 |
| ZH70158-01-06S | 1 | 0 | 6 | 106 |
| ZH70158-01-12S | 1 | 0 | 12 | 130 |
| ZH70158-01-24S | 1 | 0 | 24 | 178 |
| ZH70158-01-1210-12S | 1 | 12 | 12 | 178 |
| ZH70158-01-0610-30S | 1 | 6 | 30 | 274 |
| ZH70158-01-36S | 1 | 0 | 36 | 274 |
| ZH70158-01-1210-36S | 1 | 12 | 36 | 322 |
| ZH70158-01-48S | 1 | 0 | 48 | 322 |
| ZH70158-01-2410-48S | 1 | 24 | 48 | 418 |
| ZH70158-01-72S | 1 | 0 | 72 | 418 |
| ZH70158-01-96S | 1 | 0 | 96 | 514 |
| ZH70158-01-120S | 1 | 0 | 120 | 610 |
| ZH70158-02 | 2 | 0 | 0 | 130 |
| ZH70158-02-06S | 2 | 0 | 6 | 154 |
| ZH70158-02-12S | 2 | 0 | 12 | 178 |
| ZH70158-02-24S | 2 | 0 | 24 | 226 |
| ZH70158-02-1210-12S | 2 | 12 | 12 | 226 |
| ZH70158-02-0610-30S | 2 | 6 | 30 | 322 |
| ZH70158-02-36S | 2 | 0 | 36 | 322 |
| ZH70158-021210-36S | 2 | 12 | 36 | 370 |
| ZH70158-02-48S | 2 | 0 | 48 | 370 |
| ZH70158-02-2410-48S | 2 | 24 | 48 | 466 |
| ZH70158-02-72S | 2 | 0 | 72 | 466 |
| ZH70158-02-96S | 2 | 0 | 96 | 562 |
| ZH70158-02-120S | 2 | 0 | 120 | 658 |
| ZH70158-04 | 4 | 0 | 0 | 226 |
| ZH70158-04-06S | 4 | 0 | 6 | 250 |
| ZH70158-04-12S | 4 | 0 | 12 | 274 |
| ZH70158-04-24S | 4 | 0 | 24 | 322 |
| ZH70158-04-1210-12S | 4 | 12 | 12 | 322 |
| ZH70158-04-0610-30S | 4 | 6 | 30 | 418 |
| ZH70158-04-36S | 4 | 0 | 36 | 418 |
| ZH70158-04-1210-36S | 4 | 12 | 36 | 466 |
| ZH70158-04-48S | 4 | 0 | 48 | 466 |
| ZH70158-04-2410-48S | 4 | 24 | 48 | 562 |
| ZH70158-04-72S | 4 | 0 | 72 | 562 |
| ZH70158-04-96S | 4 | 0 | 96 | 658 |
| ZH70158-04-120S | 4 | 0 | 120 | 754 |
| ZH70158-06 | 6 | 0 | 0 | 322 |
| ZH70158-06-06S | 6 | 0 | 6 | 346 |
| ZH70158-06-12S | 6 | 0 | 12 | 370 |
| ZH70158-06-24S | 6 | 0 | 24 | 418 |
| ZH70158-06-1210-12S | 6 | 12 | 12 | 418 |
| ZH70158-06-0610-30S | 6 | 6 | 30 | 514 |
| ZH70158-06-36S | 6 | 0 | 36 | 514 |
| ZH70158-06-1210-36S | 6 | 12 | 36 | 562 |
| ZH70158-06-48S | 6 | 0 | 48 | 562 |
| ZH70158-06-2410-48S | 6 | 24 | 48 | 658 |
| ZH70158-06-72S | 6 | 0 | 72 | 658 |
| ZH70158-06-96S | 6 | 0 | 96 | 754 |
| ZH70158-06-120S | 6 | 0 | 120 | 850 |
*备注：1台伺服电机（包含两根电缆，一根为4芯10A,另一根为6芯屏蔽编码器电缆）
zh70158系列滑环技术规格参数
| 机械技术指标 | |
| 参数 | 数值 |
| 工作寿命 | 参考产品等级选型表 |
| 额定转速 | 参考产品等级选型表 |
| 工作温度 | -30℃∼80℃ |
| 工作湿度 | 0∼85% RH |
| 接触材料 | 参考产品等级选型表 |
| 壳体材料 | 铝合金 |
| 转动扭矩 | 0.1N.m+0.03N.m/6路 |
| 防震级别 | MIL-STD-810E |
| 材料 | RoHS 认证 |
| 电气技术指标 | ||
| 参数 | 数值 | |
| 功率 | 信号 | |
| 额定电压 | 0∼440VAC/VDC | 0∼440VAC/VDC |
| 绝缘电阻 | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| 导线规格 | 动力线AWG#16 | 6芯屏蔽电缆或AWG#22 |
| 导线长度 | 标准长度300mm（可根据要求调整） | |
| 绝缘强度 | 500VAC@50Hz，60s | |
| 动态电阻变化值 | < 0.01Ω | |
| 丢步率 | 小于万分之二 | |
| CE 认证 | 是 | |
zh70158产品等级
| 产品等级代号 | 最高转速 | 工作寿命 | 接触材料 |
| C（通用级） | 250RPM | 2000万转 | 贵金属 |
| D（工业级） | 600RPM | 8000万转 | 镀金-镀金 |
| H（高端级） | 1000RPM | 1.5亿转 | 金合金 |
